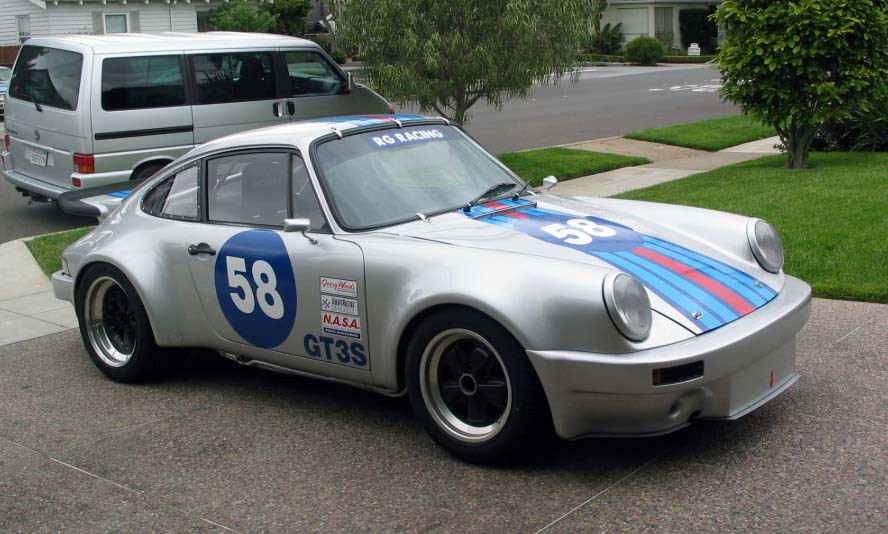

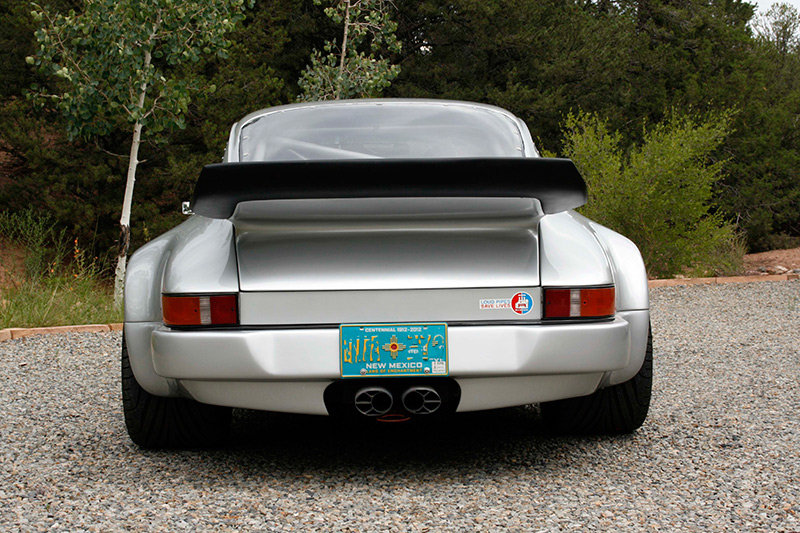

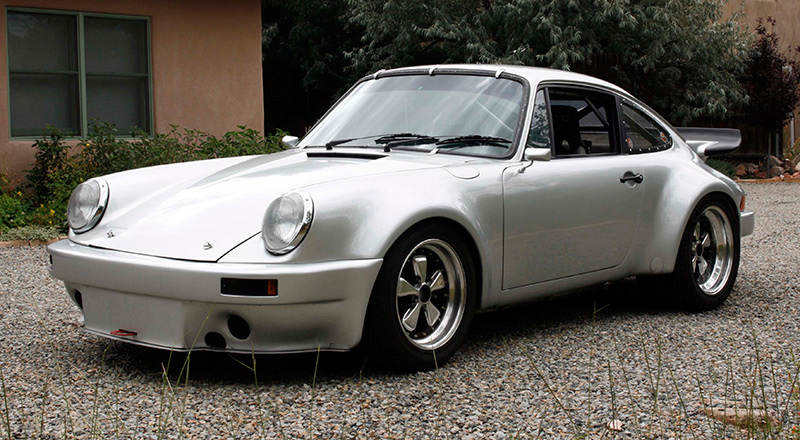

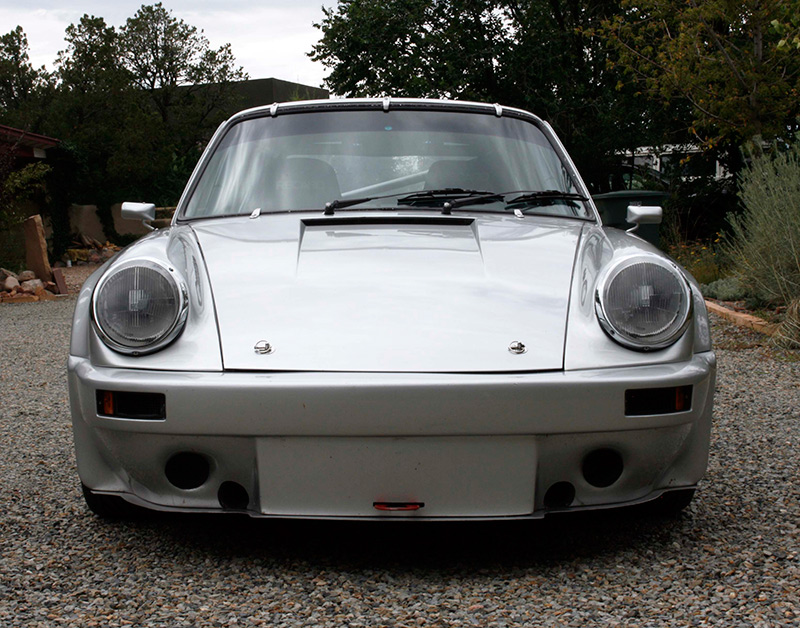

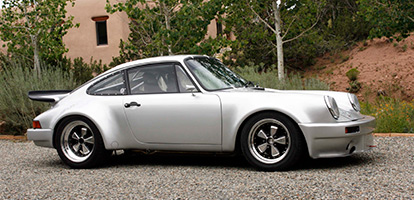

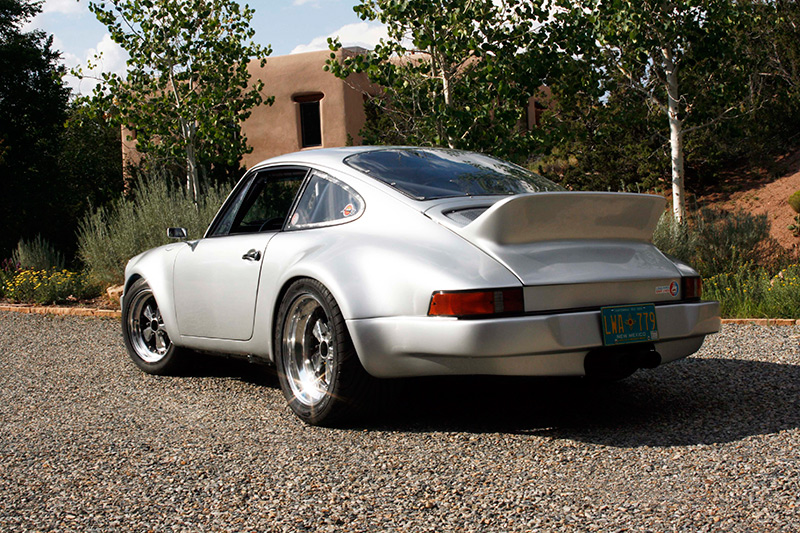

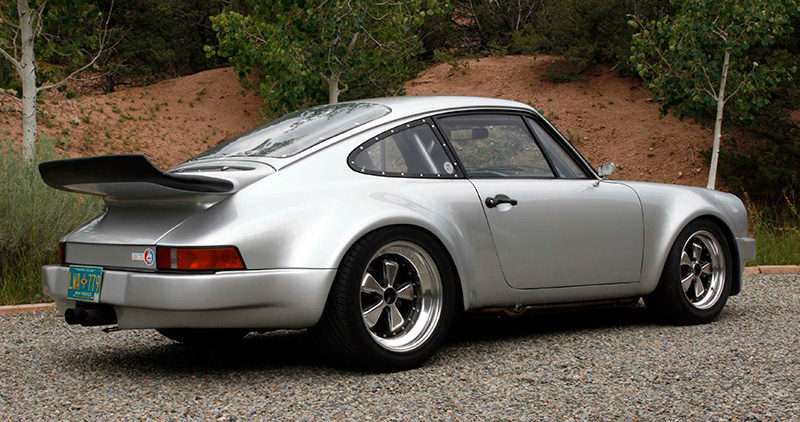

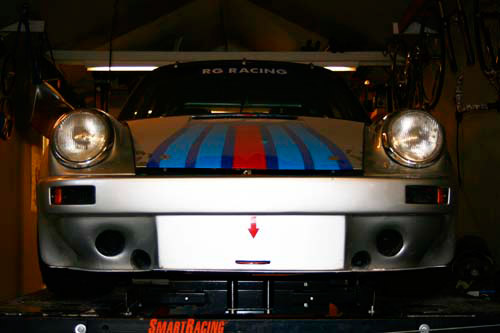

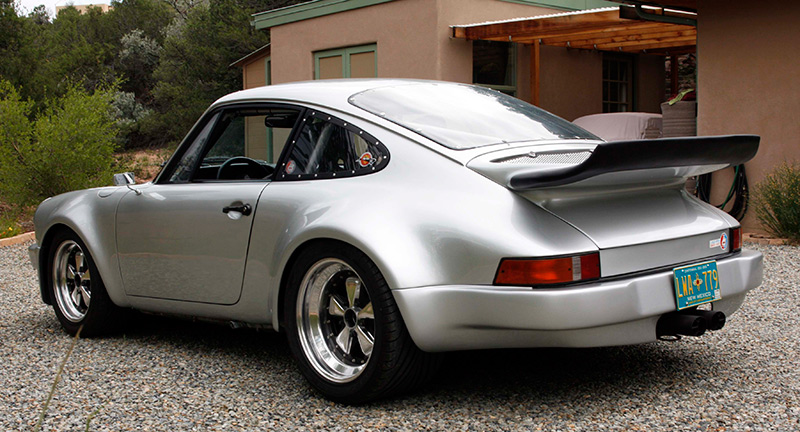

Body The following modifications were done to the '75 Carrera body: Fiberglass front & rear fenders, custom fiberglass front & rear bumpers. Custom carbon fiber roof by Wevo (The original sun roof was cut out approximately 2 " in from the front, sides and back and replaced with the carbon fiber roof weighing approximately 4 lbs). The front bumper has modified turn signal openings and the two large lower openings feed air to the twin Carrera coolers. The smaller openings feed air to the front brakes. The rear bumper lower section has been modified to wrap around the custom exhaust. Lexan rear window, side windows, door and vent windows. Door windows pull up with a strap. Glass windshield. Factory Carrera tail with custom fiberglass lip that is 1 1/2" taller than the stock rubber lip. The plastic grill has been replaced with an aluminum mesh grill. The car was painted the original factory silver in 2006.

Back to top of page

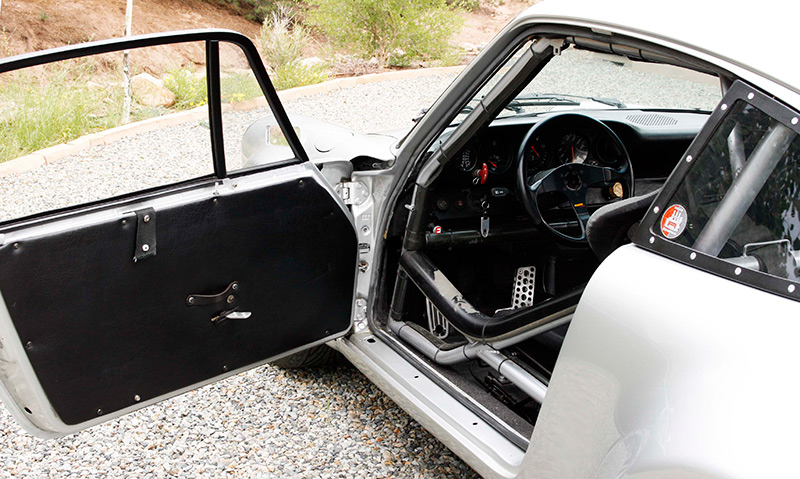

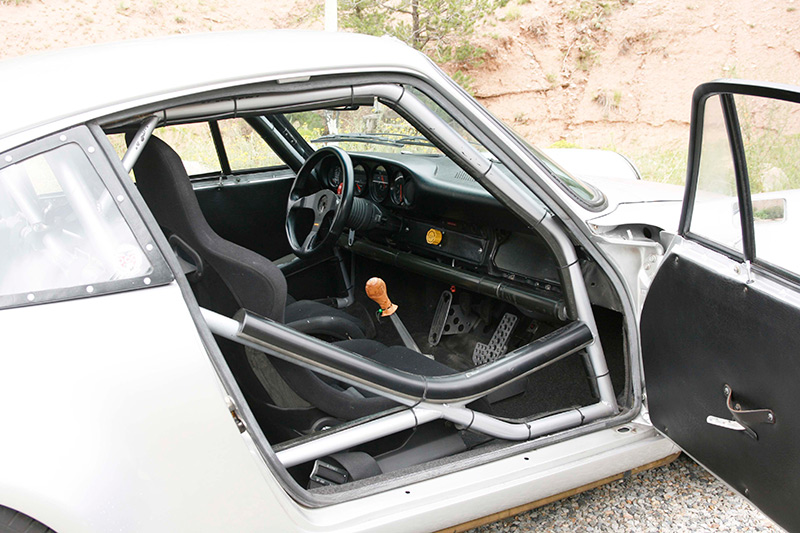

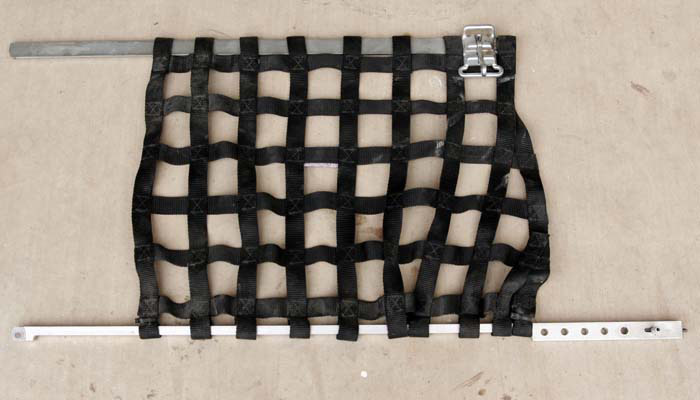

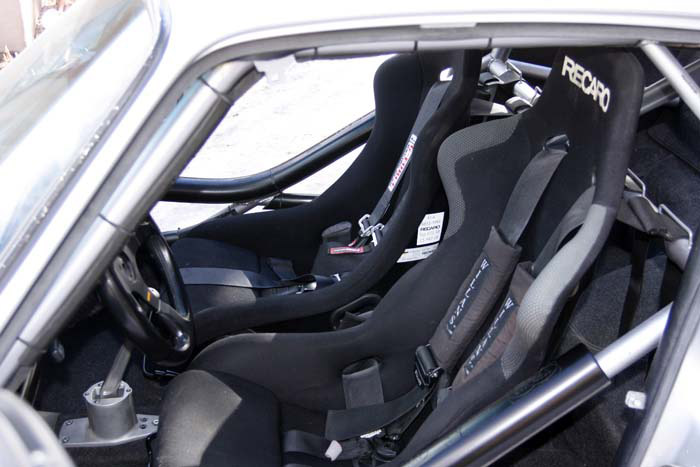

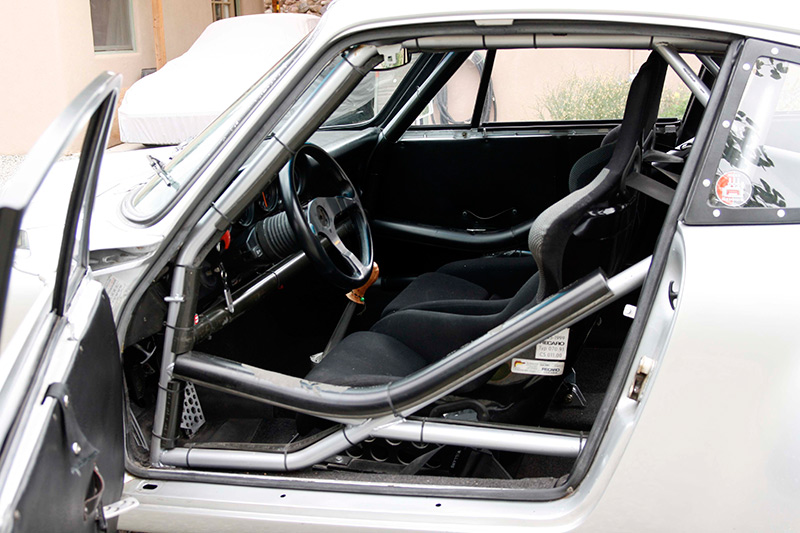

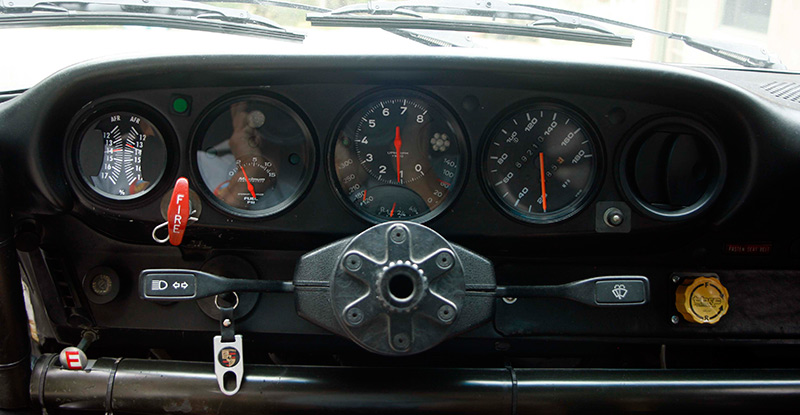

Interior Welded-in roll cage by The Racers Group Recaro SPG drivers seat Recaro Pole Position passengers seat 5-point seat belts RS light weight carpet kit FIA roll bar padding Custom gauges: (from left to right) 1. dual air fuel gauge, 2. fuel pressure gauge, oil pressure warning light, alternator light and turn signal lights, 3. tach housing incorporating S/W tach, Porsche oil pressure, oil temperature, gas gauge, and shift light. 4. stock speedometer. 5. Smart Racing fresh air vent. Longacre mirror Tilton dual m/c adjustment knob. Brake line modified for Tilton brake bias lever by the hand brake lever. Wevo shifter & coupler Custom 3-axis adjustable gas pedal. Custom dual master brake pedal using Tilton 5/8" & 3/4" m/c's. Momo Coarse steering wheel Smart Racing quick release hub Window net frame & net

Back to top of page

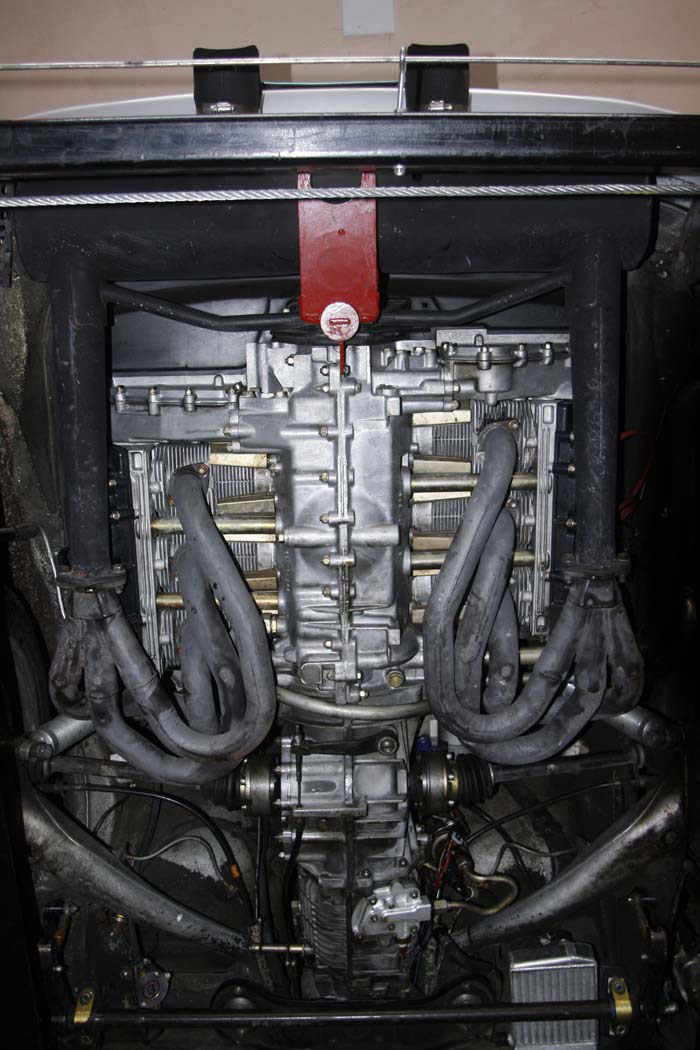

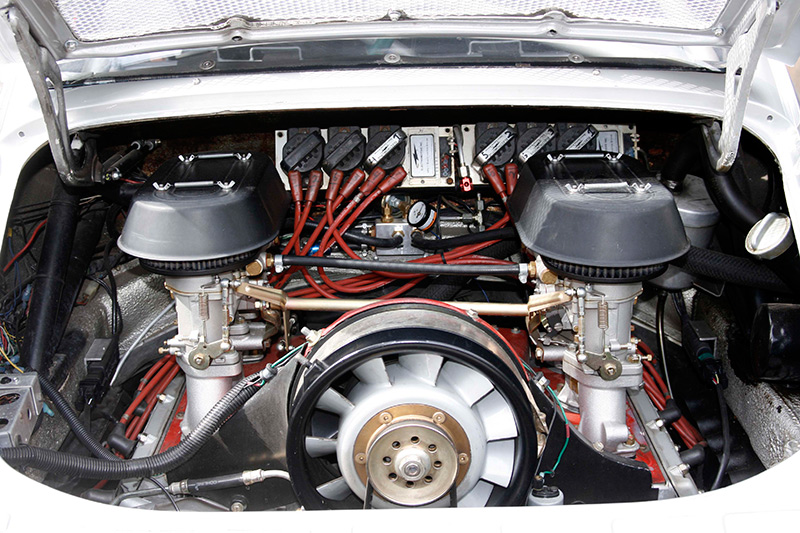

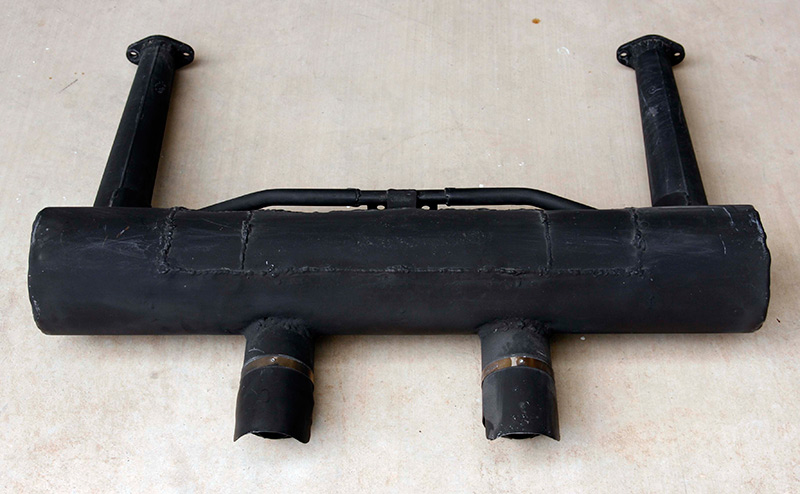

Motor 3.4 twin plug by Jerry Woods Ent. Complete motor re build 12/08. Dynoed at 325 h.p. at 7,000 rpm at the flywheel. Engine built sheet and dyno sheets included. 50mm PMO carbs, Electromotive HPV-1 crankfire twin plug ignition GE80 cams. Mahle 9.5:1 p&c 1 5/8" i.d. European headers Custom muffler 964 oil pump stock heads engine oil cooler replaced with 993 oil console & filter. Mallory fuel pump Wevo motor mounts After the motor was rebuilt we attended 3 D.E. events in 2009 then quit tracking the car. We've logged about 500 miles on the street since then.

Back to top of page

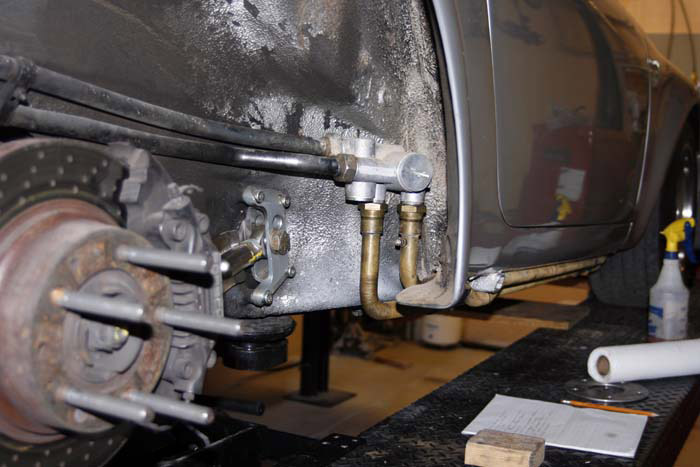

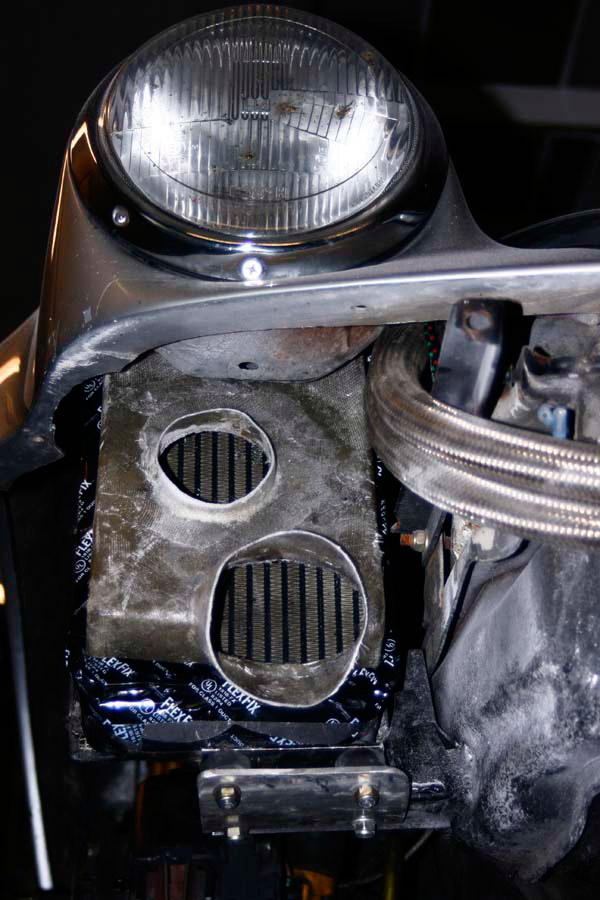

Oil Cooling System Modified oil tank by Fabcar for 2 qt. increased capacity and extra baffles. 993 oil console & filter stock thermostat Elephant Racing ribbed oil lines Carrera oil cooler in right front fender Elephant Racing wide mouth Carrera style cooler in the left front fender fiberglass front cooler boxes 2 large air inlets in front spoiler 2 air inlets through turn signals

Back to top of page

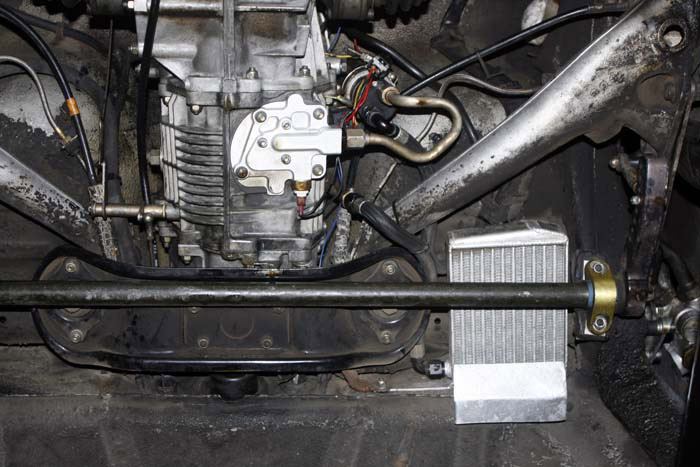

Transmission Custom built by Wevo with their case mods, Gard limited slip set up to 80% Gard custom 2,3,4,5 gears. Gear chart included. Wevo transmission cooler, Kennedy race clutch. Tilton light weight starter. Carrera axles. All axle bolts drilled and safety wired. Wevo transmission mounts.

Back to top of page

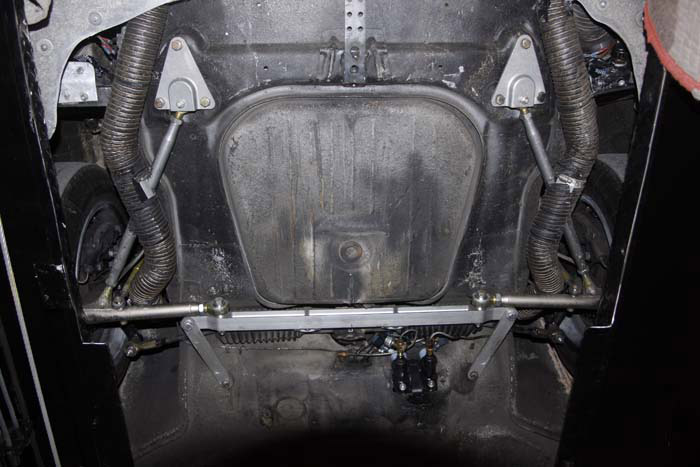

Suspension Front ERP front suspension. Smart Racing Fox adjustable nitrogen shocks, with adjustable spindle height. Smart Racing front 31mm sway bar. 350 lb. coil over springs. Wevo Camber King camber plates and carbon fiber strut tube. Rear ERP rear spring plates RSR rear coil over shocks 500 lb. coil over springs. Smart Racing 27mm sway bar Reinforced sway bar mounts.

Back to top of page

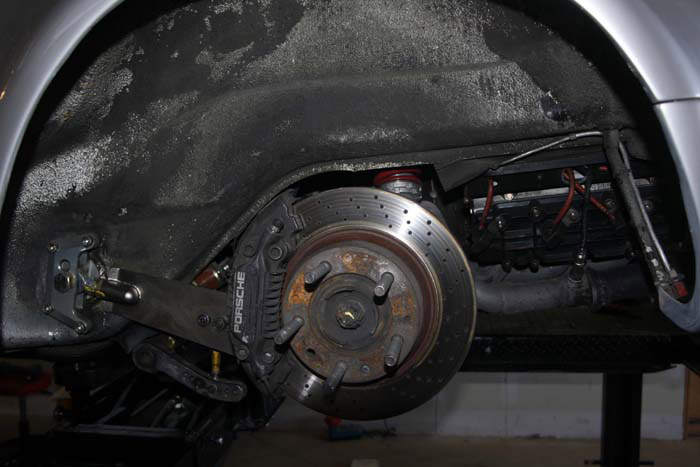

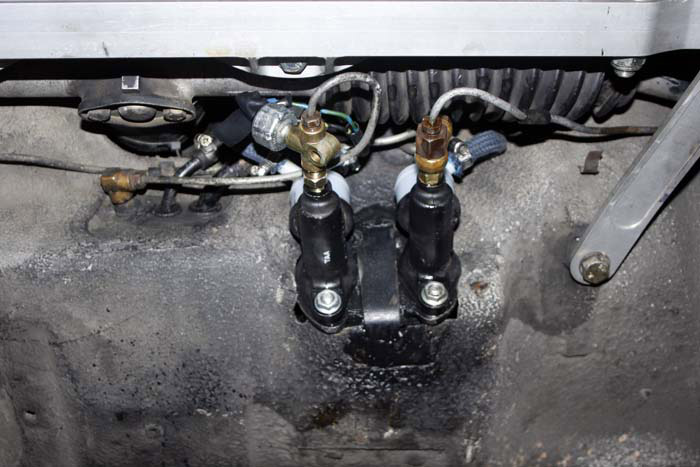

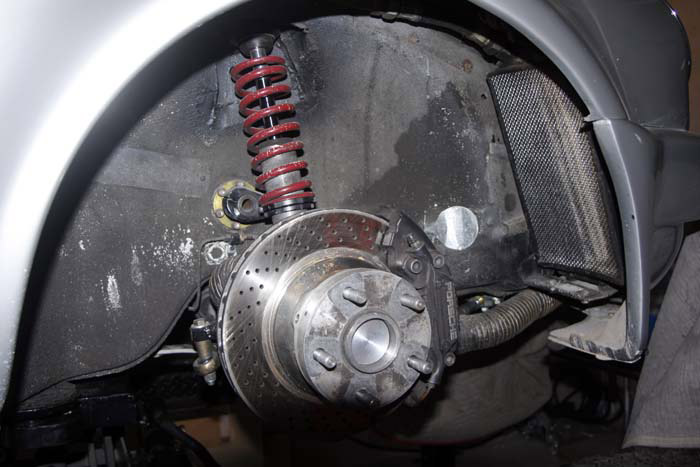

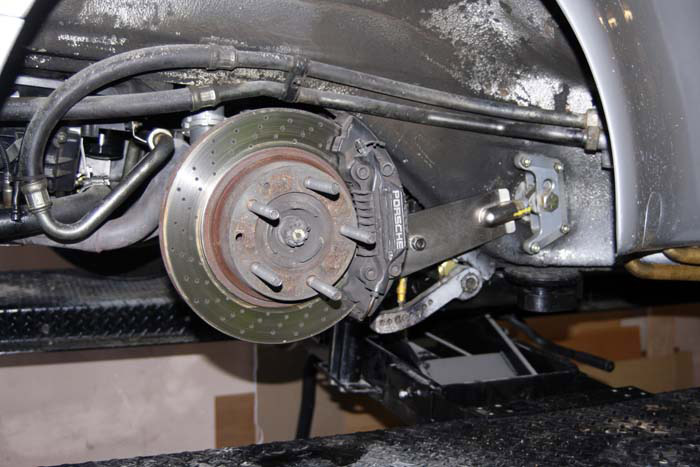

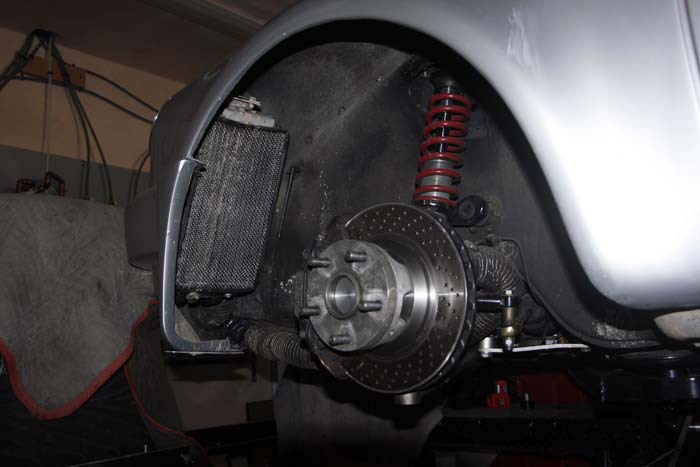

Brakes/Wheels/Tires Brakes: Custom dual master cylinder brake pedal assembly with Tilton m/c's. front: 930 hubs, 930 calipers, new Zimmerman rotors, new Mintex street pads. front brake cooling kit. rear: 930 calipers, rotors, new Mintex street pads. Wheels & tires: Fronts: 8.5'" x 16" 3 pc. Fuchs (BBS rims). Toyo T1R 245/45/ 16'" tires. Rears: 11" x 17" 3 pc Fuchs (BBS rims). Goodyear Eagle F1 GS-D3 315/35/17" tires.

Back to top of page

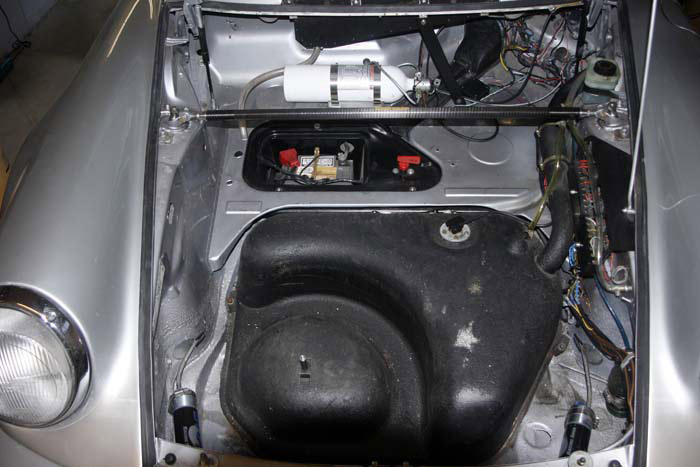

Other Fire system: Halogen 5 lb bottle mounted in the trunk with lines going to the interior and engine bay. Halogen 2.5 lb. bottle mounted on the transmission cover. Misc: Wevo battery box, Miata gel battery, kill switch with interior & exterior pulls. Front & rear tow hooks.

Back to top of page

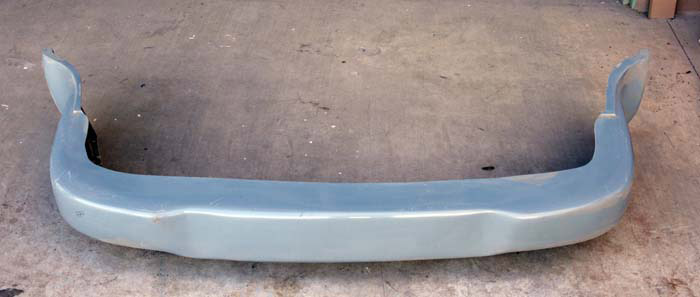

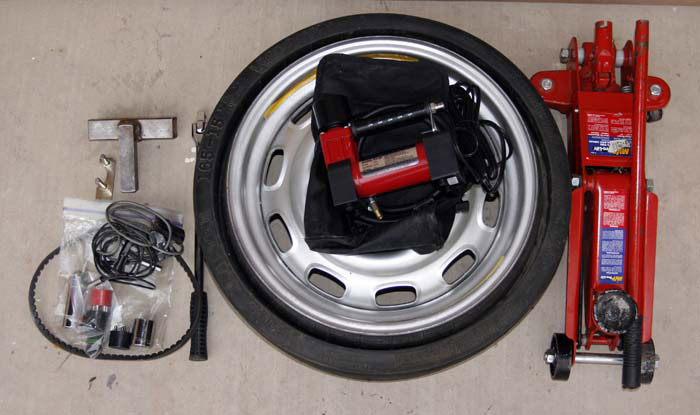

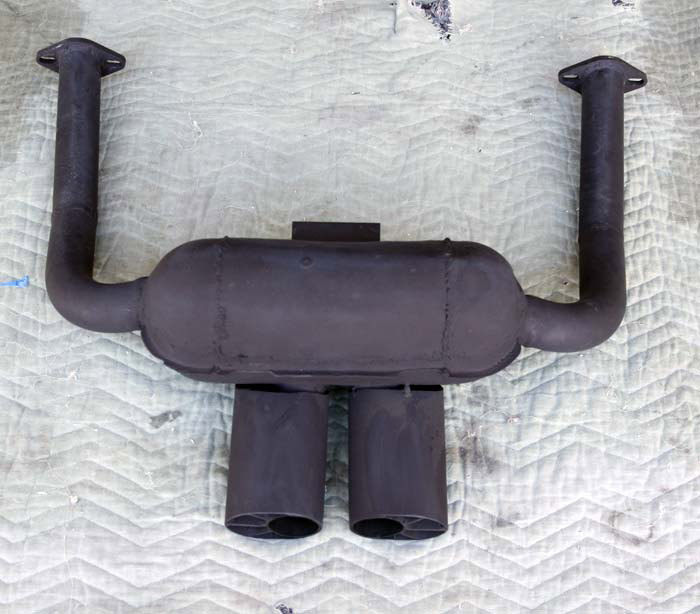

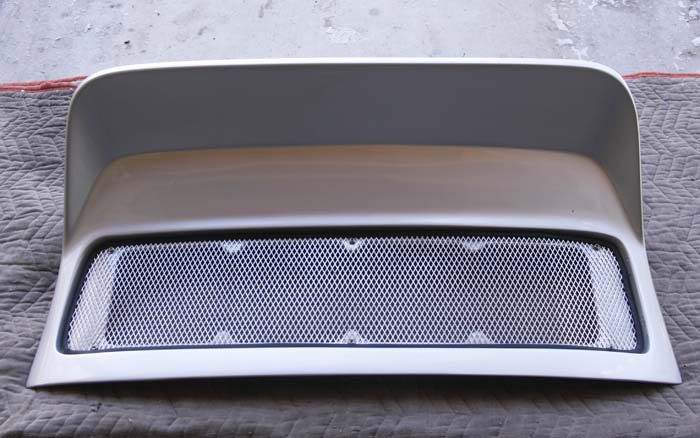

Parts Included Ducktail engine lid by "Made By Hand", using stock steel lid and f/g tail. New rear fiberglass bumper street muffler Original rear glass Original rubber lip for the stock Carrera tail. Nitrogen bottle, regulator and pressure gauge for the front shocks. 2 new sets of Bosch W3/F3 race plugs. Inflatable spare tire, compressor, and jack. Spare Electromotive trigger cable. Spare fan belt, wrench, socket & breaker bar. Car cover PPG silver paint.

Back to top of page

Video of the car in action
